AccuracyRatio Measurement Decision Risk Analysis Software - Print Analysis Screen



Printing Analysis Reports

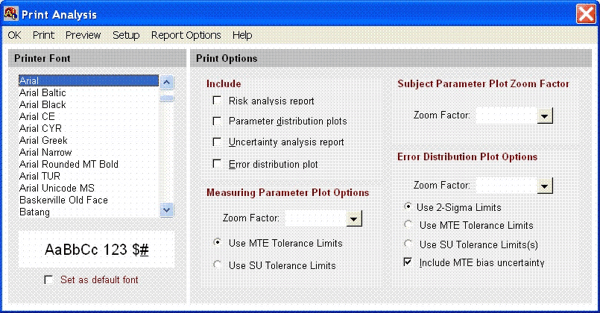

Analysis reports are printed via the Print Analysis Screen, which is accessed by selecting the Print option on the File menu or clicking the print icon on the Toolbar on the Main Screen.  Functions and features of the Print Analysis Screen are described below.



Menu Bar

Selecting Print initiates report printing. A printing status screen is displayed during printing to show the status of the print job. If desired, printing can be canceled by clicking the Cancel button on the status screen. The Print Analysis Screen disappears when report printing is finished.  Selecting Setup opens the Print Setup screen for choosing the printer, paper size and orientation.  Selecting Report Options opens the Report Options Screen for specifying report header information and the delimiter option for the summary data file.



Printer Font
In this section of the screen, the preferred report font can be selected from a scroll-down list.  A sample of the selected font is also displayed.  The selected font can be set as the default font for future reports.  If no font is selected, then AccuracyRatio will use the Arial 10 pt font for the analysis reports.



Print Options

This section lists the items available for inclusion in the analysis report.  Selecting the Risk analysis report includes computed false accept and false reject risks and the equivalent accuracy ratio.  Baseline risks are also included for comparison.  Selecting Parameter distribution plots includes distribution plots for the subject and measuring parameter biases. Additional options are available for setting the zoom factors for the plots and displaying the MTE tolerance limits or SU tolerance limits on the measuring parameter bias distribution plot.



Selecting Uncertainty analysis report includes key information for the uncertainty analysis conducted via the Measurement Process Uncertainty Worksheet.  Selecting Error distribution plot includes a plot of the distribution of the measurement process errors.   Additional options are available for setting the zoom factor for the plot and displaying 2-Sigma limits, MTE tolerance limits or SU tolerance limits on the plot.  Selecting Include MTE bias uncertainty includes the measuring parameter bias uncertainty in the total process uncertainty and error distribution plot.
