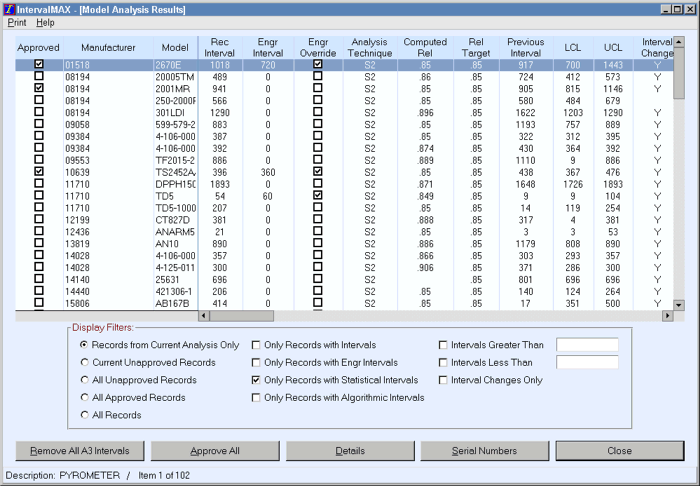

The Analysis Results Screen shows an overview of results for the selected Analysis Level.  The screen consists of the Results Table, the Display Filters and the Command buttons.


Results Table

The Results Table is used for approving and overriding intervals. An interval is approved by clicking the appropriate Approved Box. The Recommended Interval is approved unless overridden by an Engineering Interval. To override a recommended interval, the desired interval is entered into the appropriate Engr Interval cell and the adjoining Engr Override box checked.

If an interval for an item has not yet been approved, the item's reliability target may be changed. Changes made on the Results Table are reflected elsewhere in IntervalMAX.


Display Filters

The labels on the filter options are self-explanatory.  If used in different combinations, different views may be created for interval approval or other purpose. For instance, suppose that it is desired to review records for engineering approval. Putting a check mark in the Only Records with Engr Intervals box (by clicking it with the left mouse button) changes the display so that the only records shown are those for which engineering approval is required.

Analysis Details

Clicking the Details button calls up the Analysis Details Screen, which is used to view graphical and statistical analysis results as well as distributions of service history data.

Next Level Results

Statistical and other information for the next lower level of grouping can be accessed from the Analysis Results Screen. For example, if an analysis is run at the Manufacturer/Model level, the next level results pertain to Serial Number items within each Model Level grouping.  Serial number information can be accessed by selecting the desired Manufacturer/Model on the Results Table and then clicking the Serial Numbers button.

If an analysis is run at the Instrument Class level or at the Similar Equipment Group level, the next level results pertain to Manufacturer/Model items within each class grouping.  Consequently, the Serial Number button would be replaced by a Model Numbers button.
