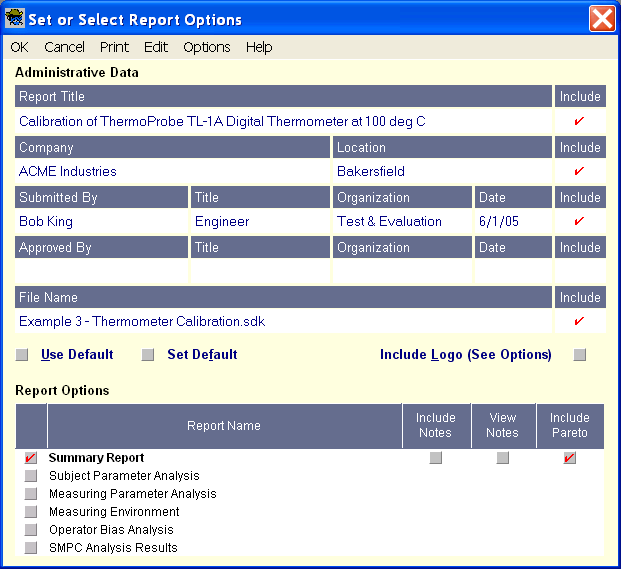

Report Options Screen
Measurement uncertainty analysis reports can be tailored to display the information you want to include using the Report Options Screen. This screen is accessed from Uncertainty Sidekick Pro's Main Screen by selecting the Print option from the File menu.   Screen features are described below.

Administrative Data

User specified administrative information can include the following elements:

• Report Title

• Company

• Location

• Submitted By

  • Title

  • Organization

  • Date

• Approved By

  • Title

  • Organization

  • Date

To include an administrative element, check its associated Include button.

Setting and Choosing Defaults
The entered administrative data may be saved for future use. This is done by checking the Set Default button. To recall the default entries, check the Use Default button.  If desired, you can also include the analysis file name for reference by checking the Include File Name button.

Report Options
A report is selected for printing or previewing by clicking the small button to the left of the Report Name. Once a report is selected, there may be supplemental options that will be enabled.  To include a supplemental option, make sure its checkbox displays a check mark.

Including Notes
To include the notes for a report, check its Include Notes button. If you wish to review or update the notes, click the View Notes button. Notes are added at the end of the report.

Including Pareto Diagrams

Where appropriate, pareto diagrams can also be included in selected reports by checking the Include Pareto button.

Establishing Reports Nomenclature
Uncertainty Sidekick Pro employs a nomenclature that has been established to be understood within the general technical community. If this nomenclature is not appropriate for your specific reporting purposes, it may be superseded. This is done using the Options screen. The Options screen may be accessed from several places within Uncertainty Sidekick Pro.

Selecting Report Fonts
You have a choice of fonts and font characteristics for report titles, subheadings, dates, labels, and text.  If you check the Set Parameters as Defaults box your selections are ready to be established as the default report font properties.  Clicking the Use Current Defaults button will display the default properties that were in place prior to the changed selections.  Clicking the Reset Defaults button displays Uncertainty Sidekick Pro’s built-in default report font properties. Clicking OK will implement the displayed font properties for future reports.
